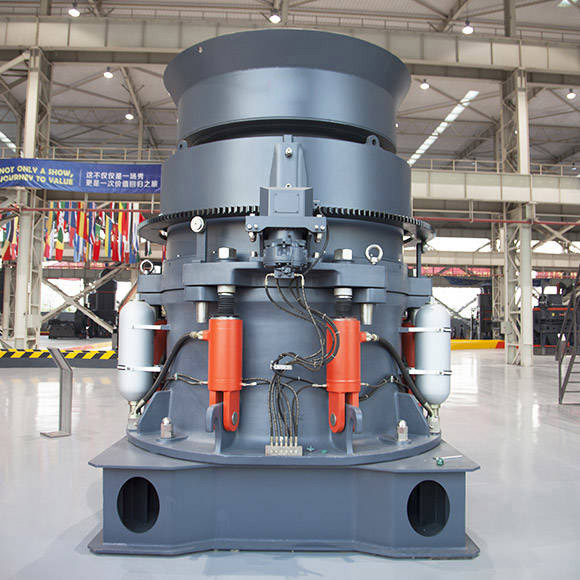

HPT Hydraulic Cone Crusher

HPT Hydraulic Cone Crusher adopts high strength casting-steel frame, alloy forging main shaft and high precision arc-shaped spiral gear driving structure, combined with multi-chambers selection and automation control system, which fulfills the performance and advantages. This HPT Hydraulic Cone Crusher can be widely used in secondary and fine crushing work for all kinds of hard materials and rocks to meet customers’ various needs for crushing.

Product Features: Higher crushing ratio, bigger processing capacity, better granularity and shape of finished products
Input Size: 0-350mm
Capacity: 45-1200TPH
Material: Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.

Advantages of Primary Gyratory Crusher：
1. PLC Integrated Control System Makes Operations Simpler;
2. Upgraded Structure, Higher Efficiency;
3. The Principle of Lamination Crushing Brings Better Discharging Size;
4. Thin oil lubrication makes the life time increased;
5. Multiple Cavity Types Meet Various Production Needs.

Working Principle of Primary Gyratory Crusher：
When a HPT Multi-cylinder Hydraulic Cone Crusher works, driven by the motor, the transmission shaft rotates under the action of belt pulley and triangular belt. Next, the transmission shaft drives the eccentric sleeve to make it rotate around the axis. Meanwhile, the eccentric sleeve forces the movable cone to do pendular movement. This movement makes the movable cone and fixed cone sometimes close to, sometimes far away from the rolling wall. Materials are continuously shocked, squeezed and crushed in the crushing cavity between the crushing wall and the rolling wall. Finally, materials are discharged out of the machine when their fineness reaches the discharging standard.

Specifications – Technical Data
